Hardware setup for BLDC FOC control with AS5600

날아라용팔이 2025. 12. 2. 02:57
반응형

Hardware setup

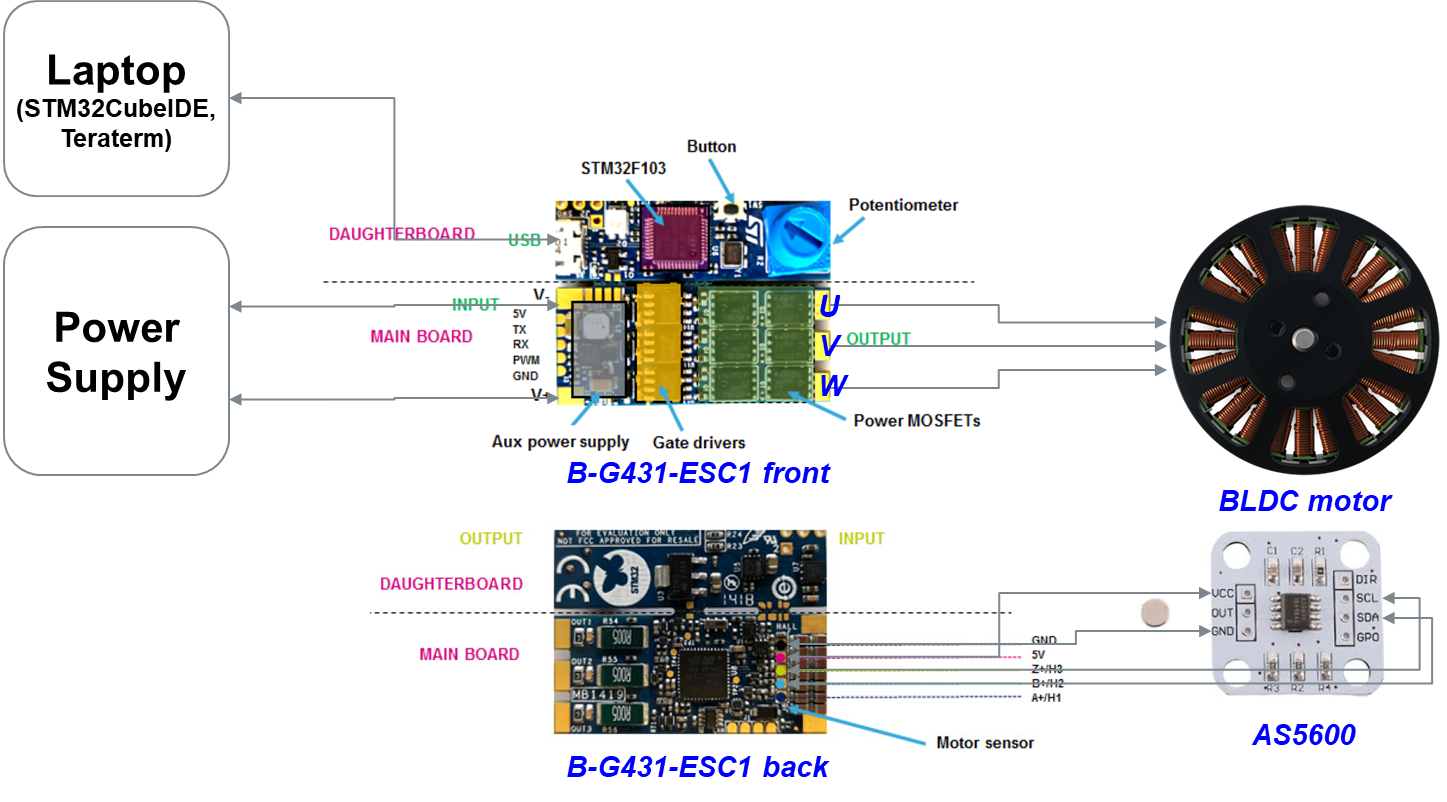

Figure is the hardware setup for BLDC foc control. Main components are

  1. B-G431-ESC1
  2. BLDC motor: MAD 5005 280kV (discontinued)
  3. AS5600 magnetic sensor communicates through I2C to B-G431-ESC1
  4. Power supply: 12V 3A
  5. Development software: STM32CubeIDE, Teraterm, Visual Studio Code
