[Seat] 시트 모터 (Seat motors)

차량용 시트에는 시트의 조절 방향에 따라서 12 way, 18 way 등 다양한 수의 모터가 사용되고 있다. 주로 DC 모터가 사용된다.

Bosch seat adjustment drives





• Back Row Motor (등받이 모터): Motor for adjusting the rear (back row) seat position.

• Slide Motor (슬라이드 모터): Motor for moving the seat forward and backward on its rails.

• Front and Height Motor (앞 높낮이 모터): Motor controlling the front part height adjustment and seat height.

• Height Motor (뒤 높낮이 모터): Dedicated motor for adjusting the overall seat height.

• Waist Motor (Lumbar Motor) (허리받이 모터): Motor for adjusting lumbar support in the backrest area.

• Tilt Motor (틸트 모터): Motor for tilting the seat cushion or seat base angle.
• Backrest Motor (등받이 모터): Motor for adjusting the recline angle of the backrest.

• Cushion Motor (쿠션 모터): Motor for seat cushion adjustments (including firmness or extension in some models).

• Front and Rear Backrest Motors (앞/뒤 허리받이 모터): Separate motors for independently adjusting the upper and lower sections of the backrest.

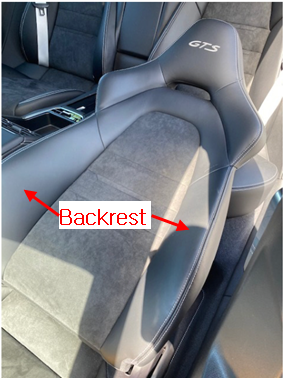

Porsches 18 way adjustable seat

https://www.pca.org/news/porsches-18-way-adjustable-sport-seats-plus-hug-you-like-a-bear-pca-tech-tips

Porsche's 18-way-adjustable Sport Seats Plus hug you like a bear | PCA Tech Tips | Porsche Club of America

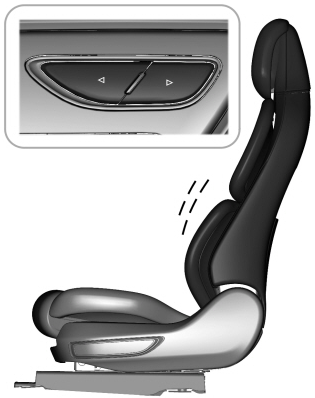

Ford motor 자료

https://www.fordservicecontent.com/Ford_Content/vdirsnet/OwnerManual/Home/Content?variantid=7105&languageCode=en&countryCode=USA&Uid=G1995912&ProcUid=G1995913&userMarket=usa&div=l&vFilteringEnabled=False&buildtype=web

https://www.fordservicecontent.com/Ford_Content/vdirsnet/OwnerManual/Home/Content?ProcUid=G1995913&Uid=G1995912&buildtype=web&countryCode=USA&div=l&languageCode=en&userMarket=usa&vFilteringEnabled=False&variantid=7105

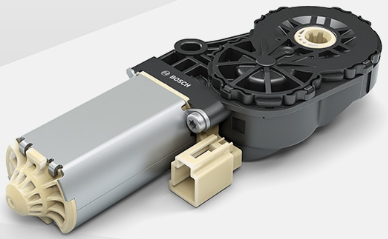

Bosch seat motor

https://www.bosch-mobility.com/en/solutions/actuators/seat-drive/

Seat drive AHC2-FL
