Hardware setup for BLDC FOC control with AS5600Motor Control/BLDC 모터 제어 2025. 12. 2. 02:57반응형

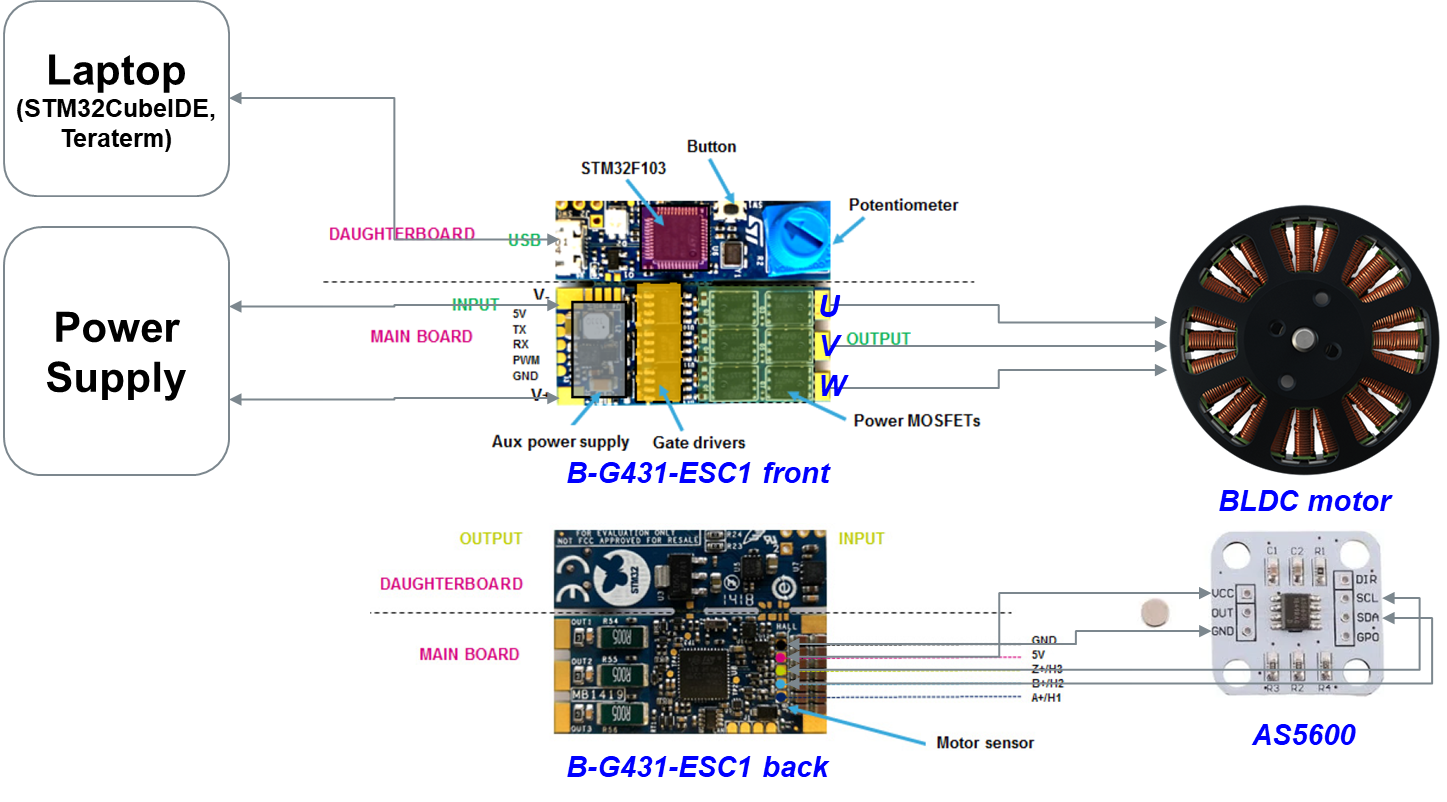

Hardware setup Figure is the hardware setup for BLDC foc control. Main components are
- B-G431-ESC1
- BLDC motor: MAD 5005 280kV (discontinued)
- AS5600 magnetic sensor communicates through I2C to B-G431-ESC1
- Power supply: 12V 3A
- Development software: STM32CubeIDE, Teraterm, Visual Studio Code
