라즈베리파이 → STM32 uart를 통한 모터 제어

통신 개념



라즈베리파이가 상위 제어기로 주변 환경을 인식하고 STM32를 통해서 모터 제어를 수행하게 된다. 상호간 통신은 UART를 이용한다. UART 통신 구현을 위해서 UART communication protocol을 아래와 같이 정의 하였다. Communication protocol은 데이터를 주고 받는데 있어서의 규칙 또는 약속이다. 통신 보안을 위한 여러가지 방법이 있지만, Hash 같은 기능을 구현하려면 좀 더 고가의 마이컴이 필요하고, UART 방식은 간단하고 저렴해서 개인 프로젝트에서 구현하기에 용이하다.



아래표는 라즈베리파이와 STM32간 데이터를 주고 받는데 있어서의 규칙 또는 약속인 통신 프로토콜이다.

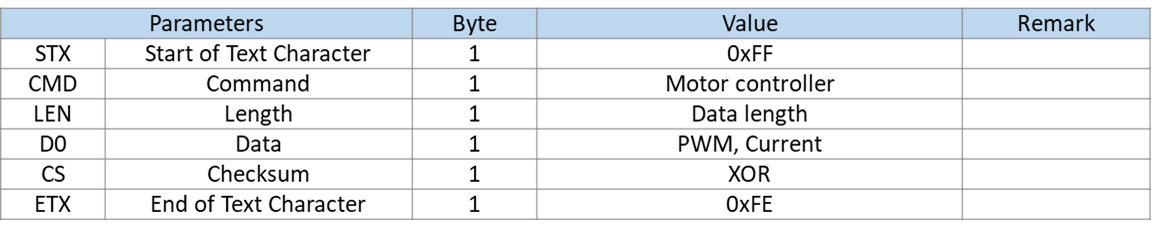

UART communication protocol



Command table은 아래와 같다.

	Command	Length	Data	Direction
Traction + Mower	0x11	3	Left, Right, Mower	Forward
	0x12	3	Left, Right, Mower	Backward
Traction	0x21	2	Left, Right	Forward
	0x22	2	Left, Right	Backward
Stop	0x23	2	stop	Stop



파이썬 송신 코드

import serial

# Constants
STX = 0xFF
ETX = 0xFE

def calculate_checksum(cmd, length, data):
    """
    Calculate the checksum using XOR.
    """
    checksum = cmd ^ length
    for byte in data:
        checksum ^= byte
    return checksum

def send_uart_command(serial_port, cmd, data):
    """
    Send a UART command with the specified data structure.

    :param serial_port: Opened serial port object
    :param cmd: Command byte
    :param data: List of data bytes
    """
    length = len(data)
    checksum = calculate_checksum(cmd, length, data)
    packet = [STX, cmd, length] + data + [checksum, ETX]

    # Convert packet to bytes and send
    serial_port.write(bytearray(packet))
    print(f"Sent packet: {[hex(byte) for byte in packet]}")

# Functions for individual commands
def send_traction_command(serial_port, cmd, data):
    """
    Send a traction command with variable-length data.

    :param serial_port: Serial port object
    :param cmd: Command for traction operation (0x11, 0x12, 0x13)
    :param data: List of data bytes
    """
    send_uart_command(serial_port, cmd, data)


# Example usage
if __name__ == "__main__":
    # configure UART settings
    port_name = '/dev/serial0' # use '/dev/ttyS0' or '/dev/serial0'
    baud_rate = 115200

    try:
        # Open serial connection
        with serial.Serial(port_name, baud_rate, timeout=1) as ser:
            print("Serial port opened successfully.")

            # Send individual commands
            send_traction_command(ser, 0x11, [30, 30, 30])          # Traction forward with data value 50

    except serial.SerialException as e:
        print(f"Error: {e}")





STM32 코드는 아래와 같다.

/* USER CODE BEGIN 0 */

#define STX 0xFF

#define ETX 0xFE

#define MAX_PACKET_SIZE 256 // Maximum buffer size





uint8_t cmd = 0;

uint8_t len = 0;

uint8_t data[MAX_PACKET_SIZE];

uint8_t packet_buffer[MAX_PACKET_SIZE];

uint8_t rx_buffer[1];

uint8_t receiving_packet = 0;

uint8_t packet_index = 0;



uint8_t uart2_duty = 25; // traction and mower motor speed





// uint8_t key_value, n=0;





void process_packet(uint8_t *packet, uint8_t length);

uint8_t calculate_checksum(uint8_t cmd, uint8_t len, uint8_t *data);



uint8_t calculate_checksum(uint8_t cmd, uint8_t len, uint8_t *data) {

uint8_t checksum = cmd ^ len;

for (uint8_t i = 0; i < len; i++) {

checksum ^= data[i];

}

return checksum;

}



void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart) {



if (huart->Instance == USART1) { // Check if UART1 triggered the callback

uint8_t received_byte = rx_buffer[0];



if (!receiving_packet) {

if (received_byte == STX) {

// Start of a new packet

receiving_packet = 1;

packet_index = 0;

packet_buffer[packet_index++] = received_byte;

}

} else {

packet_buffer[packet_index++] = received_byte;



// Check for the end of the packet

if (received_byte == ETX && packet_index > 5) {

// Extract global variables

cmd = packet_buffer[1];

len = packet_buffer[2];

memcpy(data, &packet_buffer[3], len);



uint8_t received_checksum = packet_buffer[3 + len];

uint8_t calculated_checksum = calculate_checksum(cmd, len, data);



// Print the packet_buffet if it receives a valid packet

if (received_checksum == calculated_checksum) {

process_packet(packet_buffer, packet_index);

}

// Reset for the next packet

receiving_packet = 0;

packet_index = 0;

}



// Prevent buffer overflow

if (packet_index >= MAX_PACKET_SIZE) {

receiving_packet = 0;

packet_index = 0;

}

}



// Restart UART1 reception

HAL_UART_Receive_IT(&huart1, rx_buffer, 1);

}

}



// Print the packet data to UART2 for printing

void process_packet(uint8_t *packet, uint8_t length) {



UART_Transmit("Packet Received: ");



for (uint8_t i = 0; i < length; i++) {

char buffer[10];

sprintf(buffer, "0x%02X ", packet[i]);

UART_Transmit(buffer);

}

UART_Transmit("\r\n");

}

/* USER CODE END 0 */



/**

* @brief The application entry point.

* @retval int

*/

int main(void)

{



/* USER CODE BEGIN 1 */



/* USER CODE END 1 */



/* MCU Configuration--------------------------------------------------------*/



/* Reset of all peripherals, Initializes the Flash interface and the Systick. */

HAL_Init();



/* USER CODE BEGIN Init */



/* USER CODE END Init */



/* Configure the system clock */

SystemClock_Config();



/* USER CODE BEGIN SysInit */



/* USER CODE END SysInit */



/* Initialize all configured peripherals */

MX_GPIO_Init();

MX_USART2_UART_Init();

MX_TIM1_Init();

MX_USART1_UART_Init();

/* USER CODE BEGIN 2 */

HAL_UART_Receive_IT(&huart1, rx_buffer, 1);



HAL_TIM_PWM_Start(&htim1, TIM_CHANNEL_1);

// HAL_TIMEx_PWMN_Start(&htim1, TIM_CHANNEL_1); // turn on complementary channel

HAL_TIM_PWM_Start(&htim1, TIM_CHANNEL_2);

// HAL_TIMEx_PWMN_Start(&htim1, TIM_CHANNEL_2); // turn on complementary channe2

HAL_TIM_PWM_Start(&htim1, TIM_CHANNEL_3);

// HAL_TIMEx_PWMN_Start(&htim1, TIM_CHANNEL_3); // turn on complementary channe3

/* USER CODE END 2 */



/* Infinite loop */

/* USER CODE BEGIN WHILE */



motor_control_init();



while (1)

{

uint8_t direction = 1; // forward = 1, reverse = 0



HAL_GPIO_TogglePin(GPIOA, GPIO_PIN_5);

HAL_Delay(1000);



motor_control_process(cmd, len, data);



// Uart input

#if 0

// Usart input for motor speed

UART_Transmit("Enter a number between 0 and 100:\r\n");



int number = UART_ReceiveNumber();



if (number != -1) {

char message[50];

snprintf(message, sizeof(message), "You entered: %d\r\n", number);

UART_Transmit(message);

UART_Transmit("Enter another number between 0 and 100:\r\n");

}

uart2_duty = number;

#endif

/* USER CODE END WHILE */



/* USER CODE BEGIN 3 */

}

/* USER CODE END 3 */

}

while (1)

{

HAL_GPIO_TogglePin(GPIOA, GPIO_PIN_5);

HAL_Delay(1000);



// process_packet(packet_buffer, packet_index);



/* USER CODE END WHILE */



/* USER CODE BEGIN 3 */

}

/* USER CODE END 3 */

}
